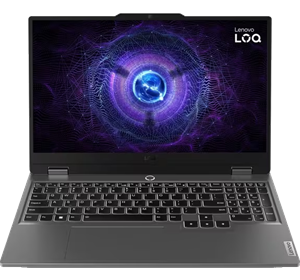

Lenovo LOQ 15IAX9
Search our help content
Search
Popular Topics
Your reference is:
Please quote your reference number if you need to contact us about your problem. It will help us pick up where you left off.
For an optimised experience at this window size, please refresh your browser.
For an optimised experience at this window size, please refresh your browser.
Motherboard
Motherboard
Chipset
Intel HM770 Chipset
Battery
Battery
Body
Body
Dimensions (mm)
359.86x258.7x23.9 (WxDxH)
Weight (kg)
2.38
Connectivity
Connectivity
Processor
Processor
Processor core count
Intel Core i5: 8
Intel Core i7: 14
Intel Core i7: 14
Processor thread count
Intel Core i5: 12
Intel Core i7: 20
Intel Core i7: 20
Model
Intel Core i5-12450HX
Intel Core i7-13650H
Intel Core i7-13650H
CPU speed
Intel Core i5: Up to 4.4GHz
Intel Core i7: Up to 4.9GHz
Intel Core i7: Up to 4.9GHz
Display
Display
Messaging
Messaging
Memory
Memory
Camera
Camera
Features
Features
AI features
Lenovo AI Engine+
LA1 AI chip
LA1 AI chip
Backlit keyboard
✓
Yes
Cooling system
Air cooling
Document viewer
✓
Yes
Form factor
SO-DIMM 262-pin
G-Sync
✓
Yes
General features
Dynamic Boost 2.0
NVIDIA DLSS 3
Lenovo Vantage
Direct X 12 Ultimate
NVIDIA DLSS 3
Lenovo Vantage
Direct X 12 Ultimate
Gesture controls
✓
Yes
Keyboard type
Membrane keyboard with numeric keypad
Music player
Yes - app required
Video calling
Yes - app required
Video player
✓
Yes
Security
Security
Security features
TPM 2.0
Password protection
Password protection
Graphics card
Graphics card
Model
NVIDIA GeForce RTX 4050
NVIDIA GeForce RTX 4060
NVIDIA GeForce RTX 4060
Warranty
Warranty
Device warranty
24 months
Power
Power
Power supply
AC 100-240V 50/60Hz
Sound
Sound
Audio details
Nahimic Audio
Number of speakers
2
Sound output
2x 2W
Speaker system
Stereo speakers
Audio Codec/s
Realtek ALC3287 codec
Storage
Storage
Hard drive capacity
512GB/1TB SSD
Built-in Devices
Built-in Devices
Built-in microphone
Yes - dual array
Built-in speakers
✓
Yes
Optical drive
✖
No
Interfaces/Ports
Interfaces/Ports
Ethernet port
✓
Yes
HDMI port
✓
Yes
Headphone/Microphone
✓
Yes
USB port
3x USB-A 3.2 Gen 1
1x USB-C 3.2 Gen 2
1x USB-C 3.2 Gen 2
